Classe Audio

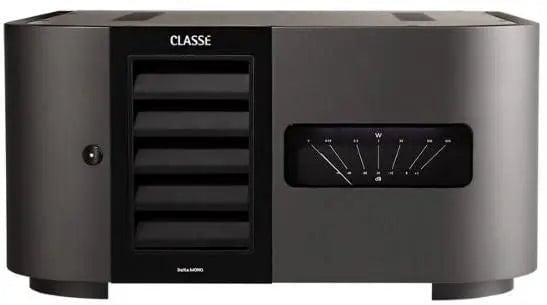

Classe Audio Delta Mono Power Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹1,296,899.00
₹1,299,999.00
check_circle
In Stock
visibility
231 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
Harmony between minimal design and unrivalled performance.
check_circle
Up to 35W delivered in pure Class A operation
check_circle
Features a 300W per unit total.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Harmony between minimal design and unrivalled performance.
- Up to 35W delivered in pure Class A operation
- Features a 300W per unit total.
- Massive, high-quality power supply.
- Custom toroidal transformer.
- 6-layer circuit boards provide for shortened signal and power pathways with lowest noise.
- Low-noise operation suitable for studio applications.
- Power-on to optimal temperature in minutes
- Active sensing and regulation of optimal amplifier temperature.
- Fully balanced output stage and balanced circuitry.
| IN THE BOX | |
|---|---|
| Sales Package | Delta Mono Power Amplifier and User Documentation |
| General | |
|---|---|
| Brand | Classe-Audio |
| Model | Delta Mono |
| Color | black |
| Specifications | |
|---|---|
|
Frequency Response
(-3dB, 50Ω source impedance)
|
1Hz – 650kHz |
|
Continuous Output Power
(at 1kHz, 0.1% THD+N)
|
C300W / 8Ω
600W / 4Ω
1000W / 2Ω (with AC line held constant)
|
|
Harmonic Distortion
(measurement bandwidth:
500kHz, 25Vrms in 4Ω or 8 Ω)
|
<0.0016% at 1kHz
<0.0018% at 10kHz
<0.0028% at 20kHz
|
|
Harmonic Distortion
(measurement bandwidth:
90kHz, 25Vrms in 4Ω or 8 Ω)
|
<0.0005% at 1kHz
<0.0006% at 10kHz
<0.0015% at 20kHz
|
|
Peak Output Voltage
(nominal AC line)
|
148Vp-p into 8Ω
156Vp-p no load
|
|
Input Impedance
(at 1kHz, BAL / SE)
|
82kΩ |
|
Voltage Gain
(at 1kHz, BAL / SE)
|
29dB |
|
Intermodulation Distortion
(SMPTE 4:1) (8Ω or 4Ω, BAL / SE)
|
<0.001% |
|
Intermodulation Distortion
(CCIF) (8Ω or 4Ω, BAL / SE)
|
<0.002% |
|
Signal-to-Noise Ratio
(A wtd in parenthesis) (22kHz BW)
|
117dB (119.5dBA) |
|
Slew Rate
|
72V / μs |
|
Output Impedance
|
0.01Ω (100Hz), 0.011Ω (1kHz),
0.015Ω (10kHz)
|
|
Damping Factor
(at 1kHz, ref 8Ω)
|
700 |
| Dimension | |
|---|---|
|
Width
|
17.50 in (444 mm) |
| Depth | 19.37 in (492 mm) |
|
Height
|
8.74 in (222 mm) |
|
Gross Weight
|
111.6 lbs (50.6 kg) |
|
Net Weight
|
97.7 lbs (44.3 kg) |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 1 Year |
